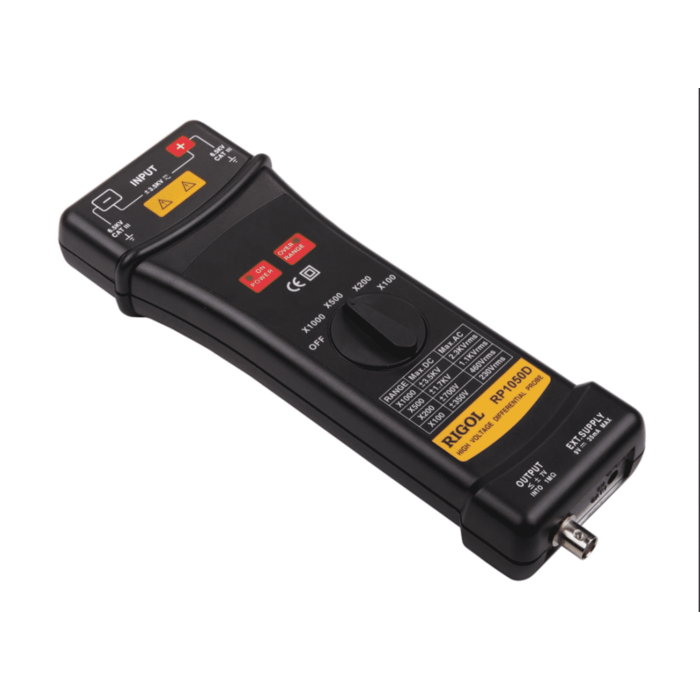

Rigol RP1050D 50 MHz 7000V differensial probe

Skriv en produktanmeldelse

kr 7 550,00 kr 6 040,00

Varenummer

100818

Prisgunstig differensialprobe fra Rigol

Detaljer

Safely and accurately capture high-voltage signals with confidence.

The Rigol RP1050D is a high-performance active differential probe designed to allow standard oscilloscopes to make safe and accurate floating measurements.

Whether you are troubleshooting advanced power electronics, testing motor drives, or working on renewable energy systems, the RP1050D provides the safety, bandwidth, and precision required for demanding engineering environments.

Key Features

High Bandwidth & Performance: With a 50 MHz bandwidth, this probe is perfectly optimized for capturing fast switching transients and high-frequency noise in modern power converters.
Massive Differential Voltage Range: Safely measure differential voltages up to 7000 V (Peak DC + AC), making it ideal for high-voltage applications.
Multiple Attenuation Ranges: Easily switch between attenuation to match your specific signal amplitude and maximize your oscilloscope's vertical resolution.
Universal Compatibility: Equipped with a standard BNC interface and a 50 Ω output impedance, it seamlessly pairs with Rigol oscilloscopes as well as any standard digital oscilloscope on the market.

Technical Specifications

Bandwidth	DC to 50 MHz (-3dB)
Rise Time	7 ns
Attenuation Ratios	X100, X200, X500, X1000
Accuracy	$\pm2\%$
Input Voltage Range (DC + AC peak-to-peak)	X100: ≤ $\le700\text{ Vpp}$ (approx. 230 Vrms or DC) X200: ≤ $\le1400\text{ Vpp}$ (approx. 460 Vrms or DC) X500: ≤ $\le3500\text{ Vpp}$ (approx. 1140 Vrms or DC) X1000: ≤ $\le7000\text{ Vpp}$ (approx. 2300 Vrms or DC)
Maximum Input Voltage	Differential: 7000 V (DC+AC peak-peak) / 2300 Vrms To Ground: 1200 Vrms
Input Impedance	Differential: 16 MΩ // 1.2 pF Single-ended to Ground: 8 MΩ // 2.3 pF
Output Impedance	50 Ω
Output Voltage	$\le \pm7.0\text{ V}$
CMRR	60 Hz: > $>80\text{ dB}$ \| 100 Hz: $$>60\text{ dB$ \| 1 MHz: $$>50\text{ d$
Dimensions & Weight	$240\text{ mm} \times 85\text{ mm} \times 36\text{ mm}$ \| 280 g

Download Rigol RP1050D user guide / technical data

Typical Applications

Power supply design and testing (AC/DC and DC/DC converters)
Motor drive and inverter characterization
Renewable energy systems (Solar inverters, wind turbine electronics)
Electronic ballast and UPS system maintenance
High-voltage floating measurements
