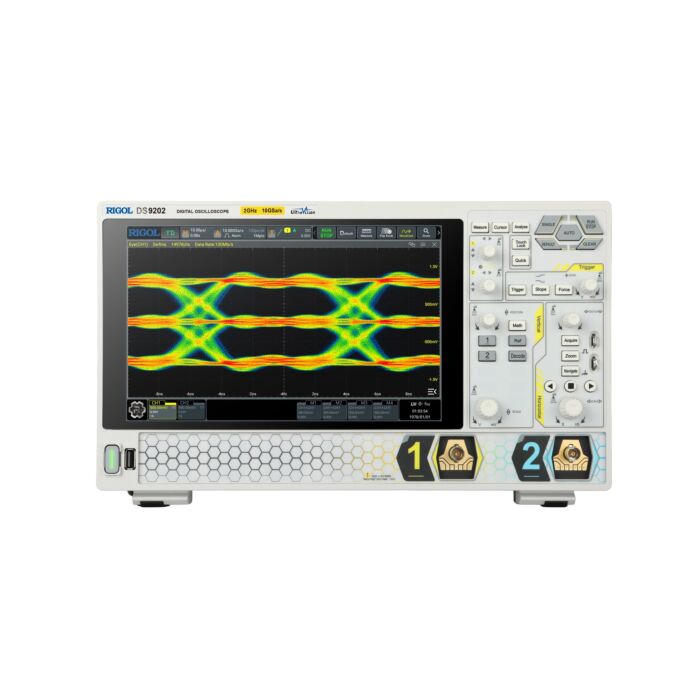

RIGOL DS9202: 2 GHz, 10 GSa/S, 2-channel Digital oscilloscope

Overview

The RIGOL DS9202 Digital Oscilloscope is expertly engineered to meet professional application needs across advanced design, debugging, and testing workflows. Utilizing a brand-new, self-developed hardware module, this series delivers an exceptional test and measurement experience without compromising on speed or precision.

Built for high-speed testing and daily troubleshooting, the DS9202 combines its analog bandwidth with a maximum 10 GSa/s real-time sampling rate and a dedicated 10 Mpts memory depth. Equipped with a fast recording mode that achieves a waveform capture rate of up to 1,000,000 wfms/s, the oscilloscope enables engineers to capture signals faster, isolate intermittent anomalies, and perform reliable analysis with high efficiency.

Highly integrated and weighing only 5.3 kg, the compact form factor makes it equally suitable for efficient laboratory testing and portable field deployment. By replacing traditional mechanical attenuators with a Solid Electronic Attenuator, the series is truly built to last—delivering vastly improved operating lifetime and rugged reliability in high-frequency, high-duty-cycle range switching applications. Combined with a flexible 8 to 16-bit vertical resolution, an excellent noise floor, and superb vertical accuracy, the DS9202 ensures your critical measurements remain accurate, clean, and dependable.

Product Features

High bandwith and Fast Capture

With a 10 Mpts memory depth combined with a waveform capture rate of up to 1,000,000 wfms/s in fast recording mode, the DS9202 helps engineers detect transient or intermittent events faster and drastically improve overall debugging efficiency.

High Vertical Resolution

The system features an 8-bit vertical resolution that extends up to 16 bits in high-resolution mode. Combined with an excellent low noise floor and high vertical accuracy, it satisfies strict requirements for clean, low-signal measurements.

Solid Electronic Attenuator

Replaces traditional mechanical attenuators with a robust solid-state design. This significantly extends the operating lifetime and delivers unmatched reliability in high-frequency, high-duty-cycle range switching environments.

Advanced Analysis in One

Built-in capabilities move you quickly from simple waveform observation to deeper, actionable insight. The hardware platform supports automated measurements of 41 waveform parameters, hardware mask testing, and advanced optional analysis functions like real-time eye diagrams and protocol compliance testing.

Technical Specifications

• Model Configuration: DS9202 (2 analog channels + 1 EXT channel)

• Max. Real-Time Sampling Rate: 10 GSa/s (in both half-channel and all-channel modes)

• Max. Memory Depth: 10 Mpts

• Max. Waveform Capture Rate: More than 1,000,000 wfms/s (in fast recording mode)

• Vertical Resolution: 8 bits (9 to 16 bits selectable in high-resolution mode)

• Vertical Sensitivity Range: 1 mV/div to 10 V/div (1 MOhm), 1 mV/div to 1 V/div (50 Ohm)

• Time Base Range: 50 ps/div to 500 s/div

• Hardware Waveform Recording: Up to 2,000,000 real-time frames continuously recording and playing

• Built-in Instruments: Integrates a digital oscilloscope, digital voltmeter, 8-digit hardware frequency counter + 48-bit totalizer, and optional protocol analyzer.

• Trigger Types: Edge, Pulse, Slope, Video, Pattern, Duration, Timeout, Runt, Window, Delay, Setup/Hold, Nth edge, and various serial buses

• Standard Protocol Decoding: Parallel, RS232/UART, I2C, SPI, and CAN

• Display Size and Type: 10.1-inch capacitive multi-touch HD display (1280x800 resolution)

• Connectivity Interfaces: USB 3.0 Host, USB 3.0 Device, LAN (supporting LXI-C), HDMI 1.4, AUX OUT (TrigOut / PassFail), 10 MHz Reference Clock In/Out

• Processor & Memory : Six-core processor (Cortex-A72 1.8 GHz + Cortex-A53 1.4 GHz), 4 GB RAM, 128 GB internal non-volatile memory

• Remote controll:  Supports remote controll via Web interface and SCPI

• Environmental Operating Temperature: -10°C to +50°C

• Dimensions (W x H x D): 358 mm x 215 mm x 125 mm

• Weight: 5.3 kg (package excluded)
