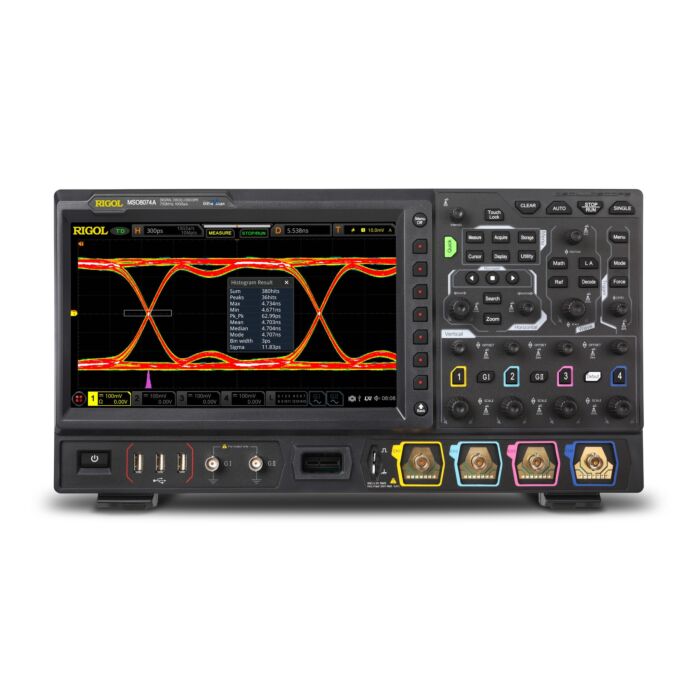

Rigol MSO8204A 2 GHz 4-kanals oscilloskop

kr 198 385,00 kr 158 708,00
Varenummer
101544

Rigol MSO8000A series digital oscilloscope is mixed signal oscilloscope based on RIGOL's ASIC chip and UltraVision II technology platform.

  • Up to 10 GSa/s real-time sample rate
  • Up to 500 Mpts memory depth (standard)
  • High waveform capture rate (over 600,000 waveforms per second)
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback
  • Integrates 7 independent instruments into 1
  • Analog bandwidth: 750 MHz, 1.5 GHz and 2 GHz (single-channel and half-channel modes)
  • 10,1-inch capacitive multi-touch screen, 256-level intensity grading display, With colour persistence
  • Web Control and VNC remote command
  • Waveform histogram analysis (standard)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function

Download Rigol MSO8000A series datasheet

Mer informasjon
ProdusentRigol
ProduktnrMSO8204A
Båndbredde2 GHz
Capture rate≥600,000 wfm/s
Samplingshastighet10 GSa/s (single channel), 5 GSa/s (2 channels), 2.5 GSa/s (all channels)
Kanaler4
Resolution8-Bit
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
