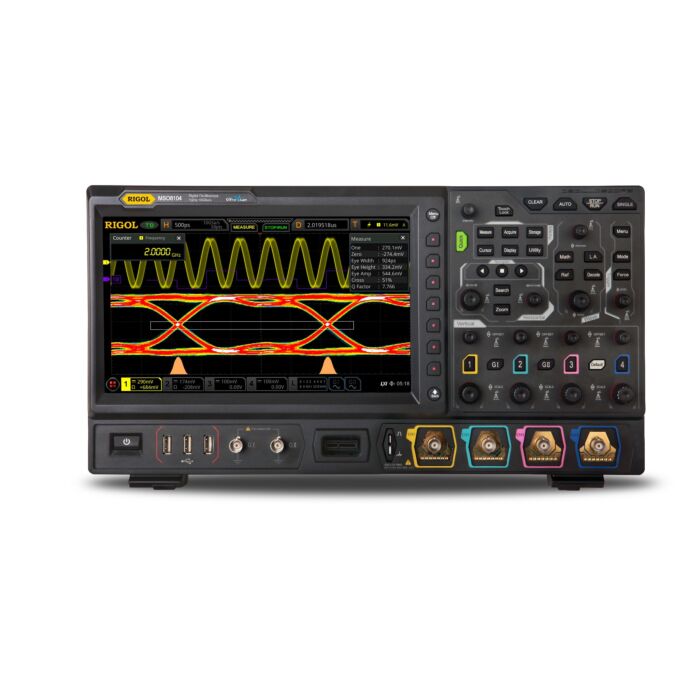

Rigol MSO8204 2 GHz 4-kanals oscilloskop
The MSO8000 allows RIGOL to support an entirely new application space. With the addition of the Jitter and Real-Time Eye Analysis combined with bandwidth up to 2 GHz, engineers now have an affordable option for their most demanding embedded design challenges.
Rigol MSO8000 Series Oscilloscopes combine best in class sampling and memory depth with Rigol’s modern, flexible User Interface enabled by our new UltraVision II architecture and innovative Phoenix Chipset.
With 600 MHz,1 GHz, and 2 GHz models each with 4 analog channels the MSO8000 Series brings RIGOL’s UltraVision II performance to the high speed engineering bench.
The MSO8000 also adds Jitter and Real-time Eye Analysis capabilities in addition to other UltraVision II functions including zone triggering, 7 instruments in one, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.
Analog bandwidth: 2 GHz (2-Channels max)
4 analog channels, 1 EXT channel, and 16 digital channels (Probe optional)
Up to 10 GSa/s real-time sample rate
Up to 500 Mpts memory depth (standard)
High waveform capture rate (over 600,000 waveforms per second)
Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
Integrates 7 independent instruments into 1, including digital oscilloscope, 16-channel logic
analyzer, spectrum analyzer, arbitrary waveform generator (option), digital voltmeter, 6-digit
frequency counter and totalizer, and protocol analyzer (option)
Auto measurement of 41 waveform parameters; full-memory hardware measurement function
A variety of math operations, built-in enhanced FFT analysis, and peak search function
Waveform histogram analysis (standard)
Independent search, navigation keys, and event table
Real-time eye diagram and jitter analysis software (option)
Built-in advanced power analysis software (option)
User-defined one-key quick operation
10.1-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
Web Control remote command
Unique online version upgrade
Sophisticated and convenient industrial design, easy to operate
Produsent | Rigol |
---|---|
Produktnr | MSO8204 |
Båndbredde | 2 GHz |
Capture rate | ≥600,000 wfm/s |
Samplingshastighet | 10 GSa/s (single channel), 5 GSa/s (2 channels), 2.5 GSa/s (all channels) |
Kanaler | 4 |
Logikkanalysator / Digitale kanaler | 16(Opsjon) |
Integrert funksjonsgenerator | Ja(Opsjon) |
