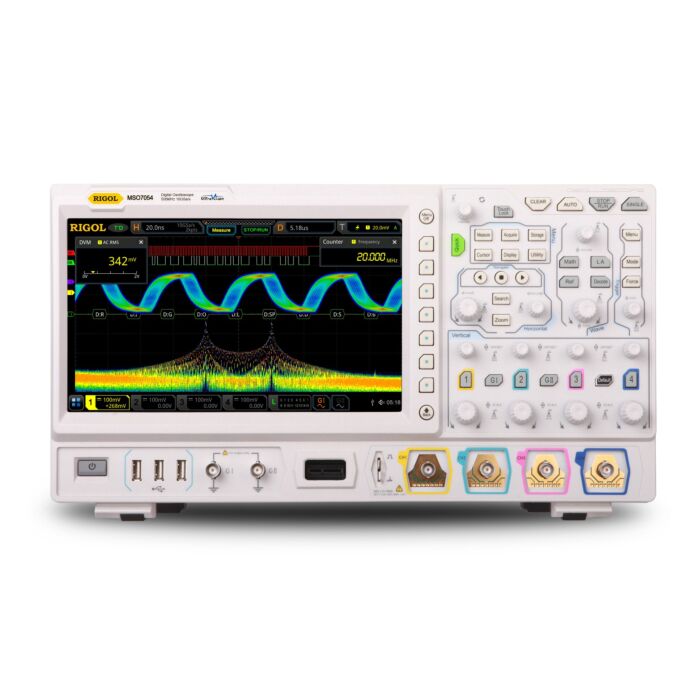

Rigol MSO7014 100MHz 4-kanals oscilloskop

kr 36 080,00 kr 28 864,00
Varenummer
100595

Kampanje til 30.06.21: Protokollanalyse, signalgenerator og power analyse lisens inkludert.

The Rigol MSO7000 Series Oscilloscopes combines best in class sampling and memory depth with their modern, flexible user interface enabled by Rigol's new UltraVision II architecture and innovative Phoenix Chipset. With 100 to 500 MHz models each with 4 analog channels, the MSO7000 Series brings innovative analysis and visualization capabilities to embedded design, power analysis, serial decode, and RF applications. Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements. Rigol MSO7000 Series Oscilloscopes provide unprecedented value and innovation in the mainstream embedded platform.

10G Sa/s Max Sample Rate   Visualize fine resolution and signal detail
Long Record Length (100M std/500M opt)   Find elusive problems in complex digital streams with long acquisitions at high sample rates
7 instruments in 1   Combine an Oscilloscope, Logic Analyzer, Protocol Analyzer, Waveform Generator, Voltmeter, and Counter/Totalizer in one instrument to quickly find answers to your measurement challenges.
600,000 wfms/s Waveform Capture rate   Minimize scope “dead time” between trigger events and increase observations of random and sporadic events.
Intensity Color graded display   Observe and highlight signal anomalies even when obscured by other signals
Protocol Analysis for today’s common serial communication buses   Trigger, decode, and visualize serial bus traffic to speed analysis and debug of Embedded Serial Bus designs
Flexible user interface combining touch, mouse, knob/button, web, and remote control   Interact with the instrument in the way that works best for you
Enhanced Color FFT   Capture and analyze in the frequency domain using the enhanced color FFT to visualize transient high-speed signals



Mer informasjon
ProdusentRigol
ProduktnrMSO7014
Båndbredde100 MHz
Capture rate≥600,000 wfm/s
Samplingshastighet10 GSa/s (single channel), 5 GSa/s (2 channels), 2.5 GSa/s (all channels)
Kanaler4
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
