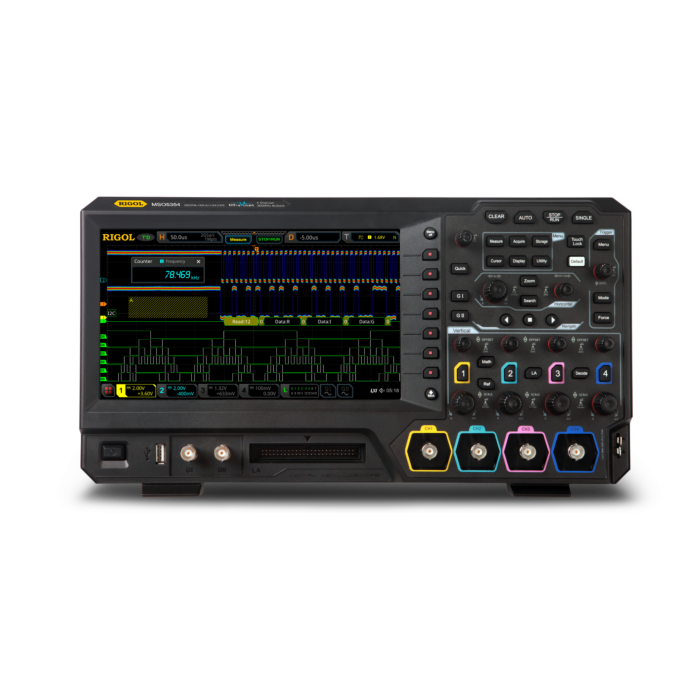

Rigol MSO5354 350MHz 4-kanals oscilloskop

kr 33 065,00 kr 26 452,00
Varenummer
100598

Rigol MSO5354 is a high performance and economical 4-channel digital oscilloscope based on the technology of RIGOL ultravision II generation.

The MSO5000 Series Oscilloscopes combine best in class sampling and memory depth with a modern, flexible User Interface enabled by Rigol's new UltraVision II architecture and innovative Phoenix Chipset.

With 70 to 350 MHz models each with 2 or 4 analog channels, Rigol MSO5000 Series brings innovative flexibility and capability to the engineer’s bench.

Analyze your critical signals with zone triggering, 7 instruments in 1, Enhanced FFTs, color grading, and histograms all supported by the high sample rate, deep memory, and full memory measurements.



  • Analog bandwidth: 350MHz
  • 4 analog channels, standard 16 digital channels(LA probe required)
  • Up to 8 GSa/s real-time sample rate
  • Up to 200 Mpts memory depth (option)
  • High waveform capture rate (over 500,000 wfm/s)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of serial protocol triggers and decodes
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Independent search, navigation keys, and event table
    Built-in advanced power analysis software (option)
  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter,a frequency counter and totalizer, and a protocol analyzer
  • 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate




Mer informasjon
ProdusentRigol
ProduktnrMSO5354
Båndbredde350 MHz
Capture rate≥500,000 wfm/s
Samplingshastighet8 GSa/s (single channel), 2 GSa/s (all channels)
Kanaler4
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
