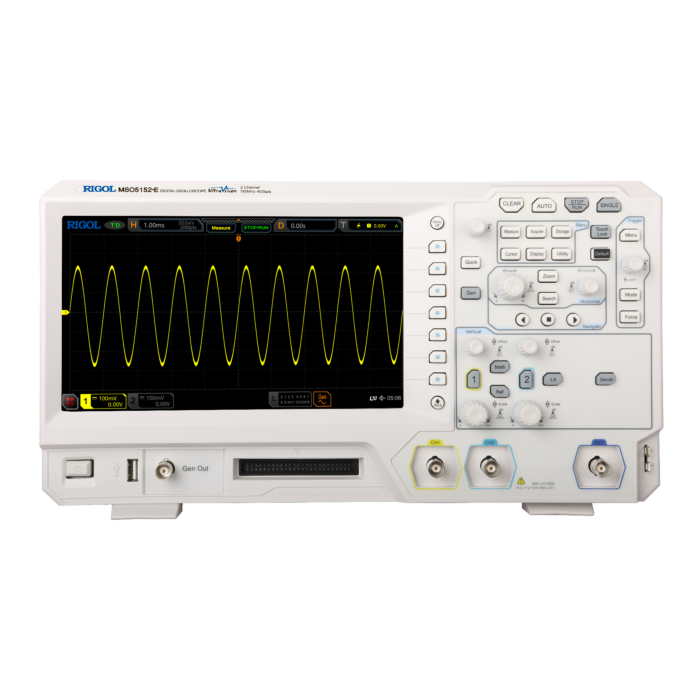

Rigol MSO5152-E 150MHz 2-kanals oscilloskop

kr 11 710,00 kr 9 368,00
Varenummer
100603

Rigol MSO5152-E is a high performance and economical 2-channel digital oscilloscope based on the technology of RIGOL ultravision II generation.

MSO5000-E series digital oscilloscope is a low cost, high-performance oscilloscope model designed based on RIGOL UltraVision II technology.

  • Analog bandwidth: 150 MHz
  • 2 analog channels,1 ext channel, 16 digital channels(LA probe required)
  • Up to 4 GSa/s real-time sample rate
  • Up to 100 Mpts memory depth (option)
  • High waveform capture rate (over 300,000 wfm/s)
  • Auto measurement of 41 waveform parameters; full-memory hardware measurement function
  • A variety of serial protocol triggers and decodes
  • Up to 450,000 frames of hardware real-time and ceaseless waveforms recording and playback functions
  • Independent search, navigation keys, and event table
    Built-in advanced power analysis software (option)
  • Integrates 7 independent instruments into 1, including a digital oscilloscope, a logic analyzer, a spectrum analyzer, an arbitrary waveform generator, a digital voltmeter, a frequency counter and totalizer, and a protocol analyzer
  • 9-inch capacitive multi-touch screen, 256-level intensity grading display, with color persistence
  • Multiple interfaces available: USB HOST&DEVICE, LAN(LXI), HDMI, TRIG OUT, and USB-GPIB
  • Web Control remote command
  • Unique online version upgrade
  • Novel and delicate industrial design, easy to operate







Mer informasjon
ProdusentRigol
ProduktnrMSO5152-E
Båndbredde150 MHz
Capture rate≥300,000 wfm/s
Samplingshastighet4 GSa/s (single channel), 2 GSa/s (all channels)
Kanaler2
Logikkanalysator / Digitale kanaler16(Opsjon)
Integrert funksjonsgeneratorJa(Opsjon)
