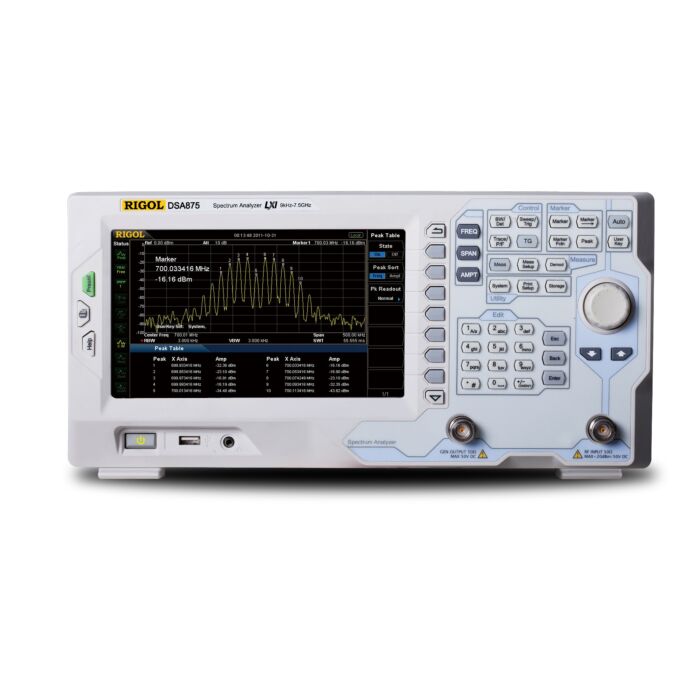

Rigol DSA875-TG 7,5 GHz Spektrumanalysator
Rigol's DSA800 Series spectrum analyzers redefined the product category by setting new standards for performance and price. Powerful Visualization and Analysis Tools at an Economical Price Deliver Unprecedented Value.
The DSA800 family features a widescreen display, compact design, and easy-to-use interface making it ideal for benchtop or field apps in RF and wireless testing and production. The spectrum analyser offers the ability to measure smaller signals using our digital IF filter, which allows for smaller bandwidth settings and reduces displayed noise levels. The DSA815 distinguishes between signals with a frequency difference as little as 10 Hz. The DSA832, DSA832E, and DSA875 have a DANL (displayed average noise level) down to -161 dBm (typical). In addition, Rigol offers great options including an EMI filter and quasi-peak detector kit, VSWR measurement package, and tracking generator ("-TG" version) for all of these models. A Preamplifier is standard on all models in the family. Whether your application is radio verification at 455 MHz or monitoring the 3rd harmonic of 2.4 GHz signals find the right spectrum analyzer in the DSA800 Series.
All-Digital IF Technology
Frequency Range from 9 kHz up to 7.5 GHz
Min. -161 dBm Displayed Average Noise Level (Typ.)
Min. < -98 dBc/Hz @ 10 kHz Offset Phase Noise
Level Measurement Uncertainty < 1.0 dB
10 Hz Minimum Resolution Bandwidth
Up to 7.5 GHz Tracking Generator (DSA8XX/E-TG)
Advanced Measurement Functions (Opt.)
EMI Filter & Quasi-Peak Detector Kit (Opt.)
VSWR Measurement Kit (Opt.)
PC Software (Opt.)
Optional RF TX/RX Training Kit
Optional RF Accessories (Cable, Adaptor, Attenuator, Bridge ...)
Complete Connectivity: LAN (LXI), USB Host & Device, GPIB (Opt.)
8 Inch WVGA (800x480) Display
Compact Size, Light Weight Design
|Frekvensområde||9 KHz to 7.5 GHz|
|Båndbredde (RBW)||10 Hz - 1 MHz|
|Phase Noise||< -98 dBc/Hz @ 1 GHz, 10 kHz offset|
|Total amplitude accuracy||< 0.8 dB|
