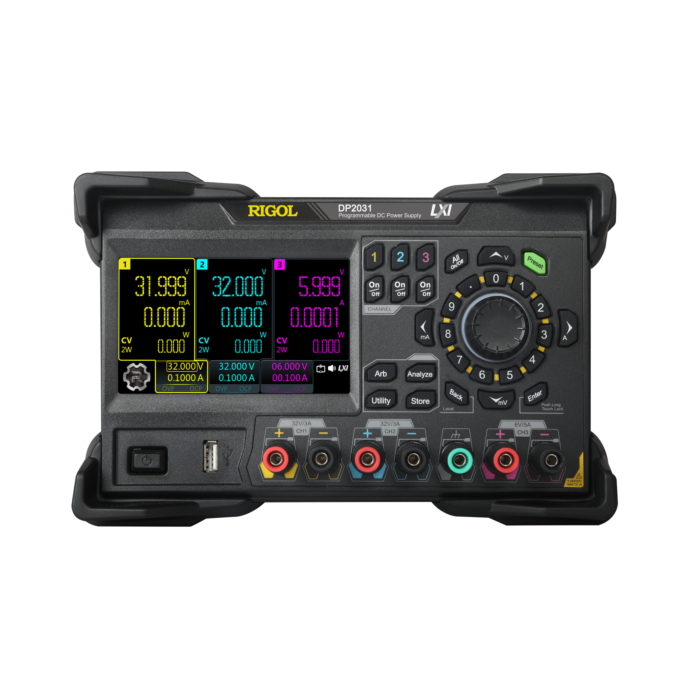

Rigol DP2031 222W 3-kanals strømforsyning, 1mV / 1mA oppløsning

Rigol DP2031 is a high-precision programmable linear power supply. In addition to basic functions such as low ripple and noise, fast transient response time, etc., it has three fully isolated channels, high precision, and high sampling rate. The resolution of small current measurement reaches to 1μA, and the annual accuracy is 28μA.

• 3 electrically isolated independent channels with a maximum total power of up to 222 W
• 32 V/3 A || 32 V/3 A || 6 V/5 A (standard)
• 32 V/2 A || 32 V/2 A || 6 V/10 A (optional)
• 4.3-inch LCD color touch screen
• Internal series/parallel connections for CH1 and CH2
• High resolution for measurement of 1 μA low range current
• Capability to measure and display wide dynamic ranges of current
• Excellent programming/readback accuracy
• Transient response time <50 μs
• Front and rear output terminals
• 2-wire or 4-wire remote sense
• A maximum of 512 arbitrary points with dwell time down to 1 ms; various built-in basic waveforms
• Low output ripple and noise <350 μVrms/2 mVpp
• Command processing time <10 ms
• Automatic switchover between low and high range measurement
• Timing output, energy consumption analysis (IoT), data logging and analysis
• Capability to measure the minimum of 1 ms pulse current
• Three rack-units (3U), 1/2-rack form factor
• Software control
• Over voltage, over current, and over temperature protection
• Various interfaces available: USB HOST, LAN, Digital I/O, and RS232 (standard)
