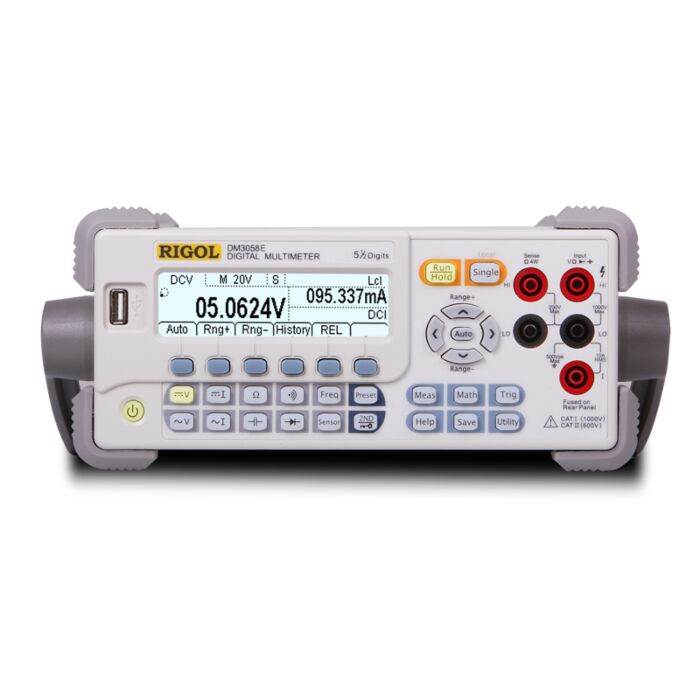

Rigol DM3058E 5,5 siffer multimeter
6 780,00 kr 5 424,00 kr
Varenummer
100701
Rigol DM3058E is an economical 5.5-digit digital multimeter. It is designed for the test requirements of high accuracy, multi-function and automatic measurement. It integrates the functions of automatic measurement, multiple mathematical transformations and any sensor measurement. It provides USB and RS232 interfaces.
|
Function |
Range |
1Year Accuracy Specifications |
|
|
sa |
|
DM3068 |
DM3058/E |
|
DC Voltage |
200.000mV ~ 1000.00V |
0.0035 + 0.0006 |
0.015 + 0.003 |
|
DC Current |
200.000uA ~ 10.0000A |
0.030 + 0.003 |
0.055 + 0.005 |
|
AC Voltage (RMS) |
200.000mV ~ 750.000V |
0.06 + 0.04 |
0.2 + 0.05 |
|
AC Current (RMS) |
200.0000uA ~ 10.00000A[1] |
0.10 + 0.04 |
0.30+ 0.10 |
|
Resistance |
200.000Ω ~ 100.000MΩ |
0.010 + 0.001 |
0.020 + 0.003 |
|
Diode Test |
2.000V/1mA |
0.010 + 0.020 |
0.05 + 0.01 |
|
Continuity Test |
2000.0Ω/1mA |
0.010 + 0.020 |
0.05 + 0.01 |
|
Period/Frequency |
3Hz-1MHz (200mV ~750V) |
0.007 |
0.01+ 0.003 |
|
Capacitance |
2.000nF ~ 100.0mF[2] |
1 + 0.3 |
1+0.5 |
|
Max. Reading Speed |
|
10000 rdgs /s |
123 rdgs /s |
|
Volatile Memory |
|
512k readings of history |
2000 readings of history records |
|
Remote Command |
|
RIGOL, Agilent, FLUKE |
RIGOL, Agilent, FLUKE |
| Produsent | Rigol |
|---|---|
| Produktnr | DM3058E |
