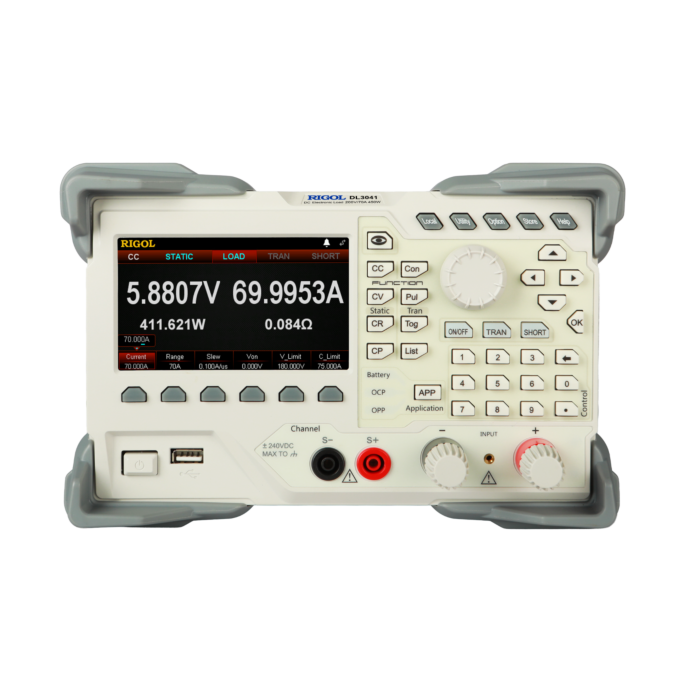

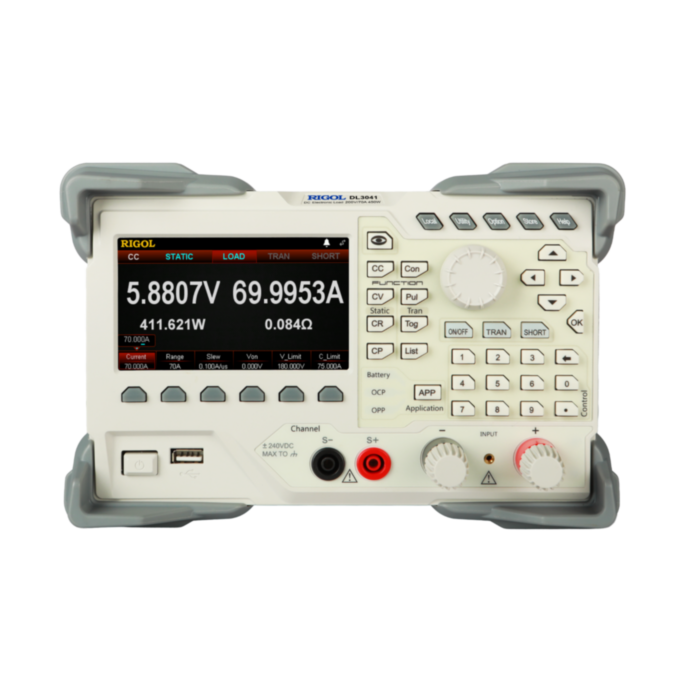

Rigol DL3041 450W Programmerbar DC Last

Elevate your testing with the Rigol DL3041, a high-performance DC electronic load designed for precision and versatility.

This single-channel unit offers 200V/70A capacity with 450W total power, boasting a 30kHz dynamic mode and 0.1mV/0.1mA readback resolution for superior accuracy.

Featuring a vibrant 4.3-inch TFT display, advanced transient testing, and built-in LAN, USB, and RS232 interfaces, it’s perfect for battery, power supply, and electronics testing.

With robust protections and an intuitive interface, the DL3041 is a top choice for engineers seeking premium performance at great value.

Specifications:

• DC 200 V / 70 A, total power up to 450 W
• Dynamic mode: up to 30 kHz
• djustable current rising speed: 0.001 A/μs to 5 A/μs
• Min. readback resolution: 0.1 mV，0.1 mA
• 4.3-inch TFT LCD, capable of displaying multiple parameters and states simultaneously
• Overvoltage/overcurrent/overpower/overtemperature/reverse voltage protection
• 4 static modes: CC, CV, CR, CP
• 3 dynamic modes: continuous, pulsed, toggled
• List function supports editing as many as 512 steps
• Battery test function, OCP test, OPP test, factory test function, etc.
• Short-circuit test function
• Built-in RS232/USB/LAN communication interface
• Free UltraLoad Software for remote operation and monitoring
  • Easily reconfigure or investigate the setup of the DL3000 remotely over USB or Ethernet with the free UltraLoad software. Record captured data over time and save long term test results to characterize and better understand your power system performance.
• USB-GPIB module (optional)

Download datasheet for Rigol DL3041 DC Load
