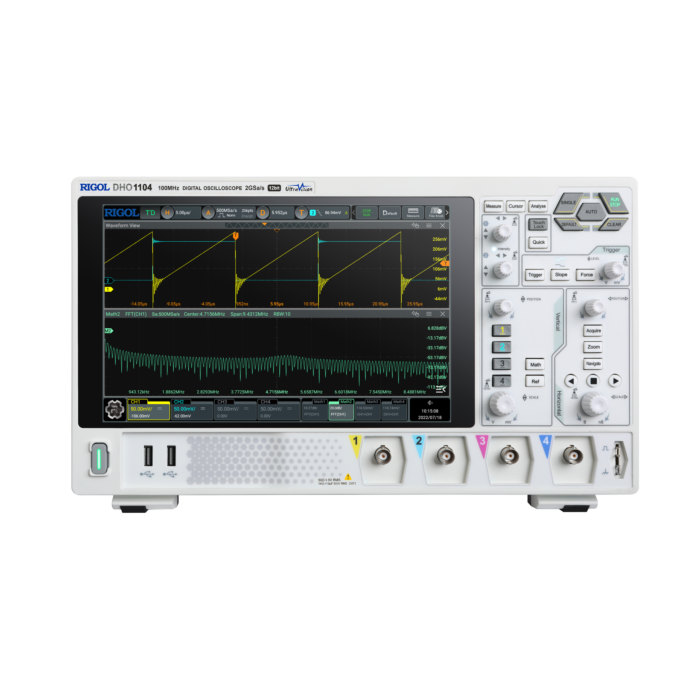

Rigol DHO1104 12-Bit 100MHz 4-kanals oscilloskop

Spesialpris kr 14 310,00 kr 11 448,00 Veil. pris kr 20 440,00

Begrenset tilbud, gjelder kun lagervarer!

  • 100 MHz bandwidth.
  • 12-bit vertical resolution
  • Real-time sampling rate up to 2 GSa/s.
  • Memory depth up to 100 Mpts. (Option)
  • Input Impedance 1 MΩ ± 1%
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10" touch screen

Rigol DHO1000 series digital oscilloscope is designed to meet the designing, debugging, and testing requirements of the mainstream oscilloscope market.

Adopting the brand-new chipset "Centaurus" developed by RIGOL, this series achieves a fast waveform capture rate of 1,500,000 wfms/s with the UltraAcquire mode, up to 100 Mpts memory depth, 12-bit vertical resolution, all combined with excellent noise floor performance and vertical accuracy to meet your requirements for more accurate measurements, bringing extraordinary T&M experience to you.


  • Analog channel bandwidth: 100 MHz
  • 4 analog channels and 1 EXT channel
  • 12-bit vertical resolution
  • Real-time sample rate up to 2 GSa/s
  • Ultra-low noise floor for cleaner signals, measuring small signals accurately
  • Memory Depth up to 100 Mpts (optional)
  • Vertical sensitivity range: 500 μV/div to 10 V/div
  • Up to 1,500,000 wfms/s waveform capture rate with the UltraAcquire mode
  • 10.1'' 1280*800 HD touch display
  • User-friendly Flex Knobs, bringing smoother interaction
  • Standard photoelectric encoder operating knobs, effectively prolonging its service life
  • Standard USB Device & Host, LAN, and HDMI interfaces

Last ned datablad for Rigol DHO1000 series

Mer informasjon
Båndbredde100 MHz
Capture rate50,000 wfms/s, 1,500,000 wfms/s (UltraAcquire Mode)
Samplingshastighet2 GSa/s (single channel), 1 GSa/s (2 channels), 500MSa/s (all channels)
Integrert funksjonsgeneratorNei
