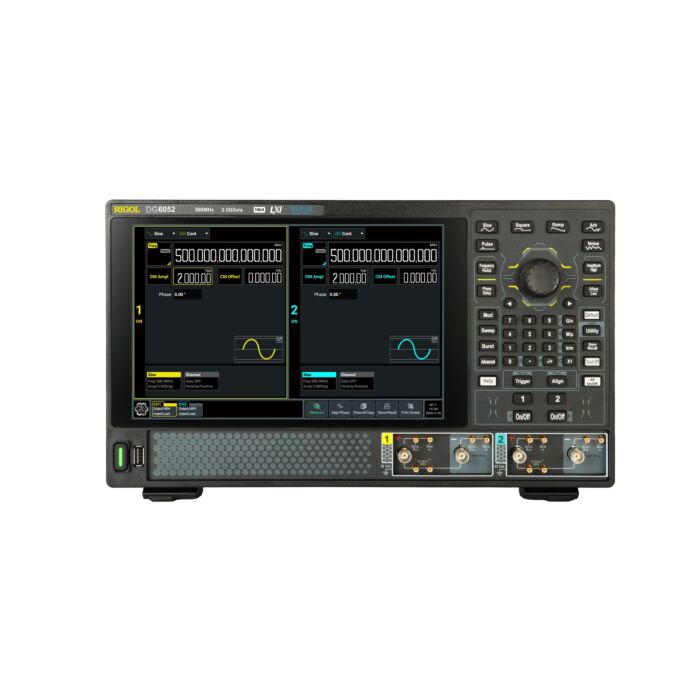

Rigol DG6052 500 MHz 2-kanals (differensielle) signalgenerator

The Rigol DG6052 represents the next generation of high-end signal generation, combining a 500 MHz bandwidth with an advanced architecture designed for the most demanding R&D and industrial environments. Featuring two differential channels that can provide four single-ended outputs, this instrument delivers outstanding signal fidelity with 16-bit vertical resolution and a 2.5 GSa/s sample rate.

Key Features:

• High-Voltage Differential Drive: Delivers up to 20 Vpp differential output, eliminating the need for costly external power amplifiers or baluns.

• Exceptional Signal Integrity: Achieve ultra-fast 350 ps square wave transition times for precise high-speed digital circuit testing.

• Advanced Waveform Simulation: Offers a massive standard memory depth of 256 Mpts per channel (expandable to 512 Mpts) to reproduce long, complex, and non-repetitive waveforms.

• Full Channel Isolation: All channels feature electrical isolation to eliminate ground loops and ensure the safety of your Device Under Test (DUT).

• Versatile Output Modes: Supports a comprehensive suite of modes including IQ Modulation, PRBS, Sequence, and Pattern generation.

• Intuitive Interface: A large 10.1-inch HD touch screen allows for seamless parameter configuration using touch and drag gestures.

Ideal Applications:

• Power Semiconductor Testing: Simulation of SiC/GaN gate drive signals.

• High-Speed Digital Design: Clock source jitter tolerance and eye diagram analysis.

• Automotive Electronics: Simulation of CAN-FD and Automotive Ethernet differential signals.

• Advanced Research: Multi-channel synchronous physical experiments and advanced computing pulse generation.

The DG6052 simplifies complex test chains while ensuring the reliable, repeatable results required for cutting-edge electronic applications.

Download Rigol DG6052 Datasheet
