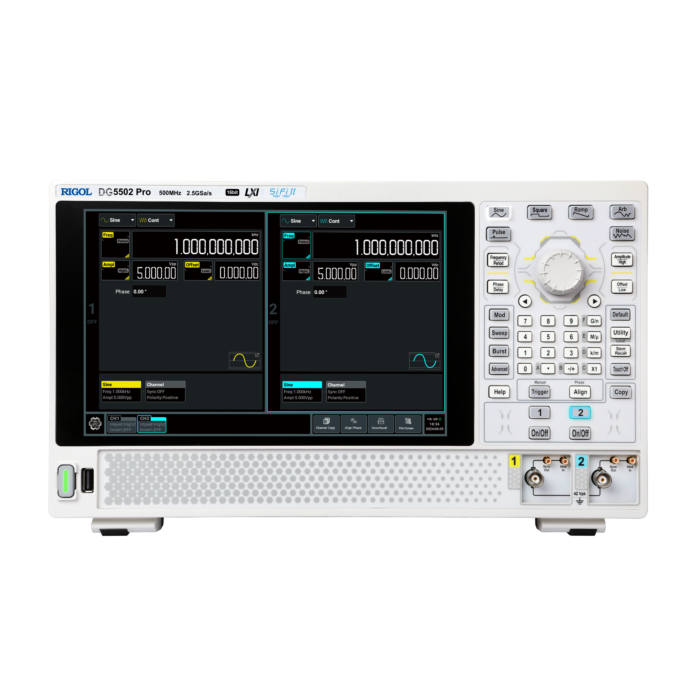

Rigol DG5352 Pro 350 MHz 2-kanals signalgenerator

The Rigol DG5000 Pro is a cost-effective multi-functional and multi-channel function/arbitrary waveform generator with up to 500MHz bandwidth, 8 channels, 2.5 GSa/s sample rate and up to 128 Mpts. memory depth pr. Channel.

The DG5000 Pro is an all-in-one Generator that integrates Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator and Analog / Digital Modulator.

 Product Features

• 2-channel outputs
• All channels are isolated from the ground.
• 2.5 Gsa/s maximum samplerate
• 350 MHz bandwith
• 16-bit vertical resolution
• 64 Mpts/CH (128 Mpts/CH optional) Maximum Arb. waveform length
• Square: 170 MHz max. frequency, 0.8 ns min. rise time
• Pulse: 120 MHz max. frequency, 4.2 ns min. pulse width
• 512 Steps sequence (Optional)
• Built-in high-order harmonic generator (max. 20th order)
• 10.1" HD touch screen, allowing you to configure multi-channel waveforms together from a single screen
• Web remote control function.
• Multiple External Interfaces including USB Host & Device, LAN, and HDMI.
• Multiple Aux. in / out ports, including modulation input, trigger / gated burst input, trigger out, sync and 10 MHz Reference Input and output
• All channels are isolated from the ground.
• Optional functions: Sequence, IQ Multi-pulse, Pattern, Multi-tone.

Download Rigol DG5000 Pro datasheet



Multi-pulse Output Function

It can generate pulse signals with adjustable edges and pulse width to help engineers perform the Double Pulse Test quickly.



I/Q Digital Modulation

It generates multi-channel IQ signals, facilitating the development and validation of communication systems, digital signal processing and RF circuits.



Various Modulation Types

It supports analog and digital modulation types including AM, FM, PM, ASK, FSK PSK and PWM. Internal and external modulation sources are available. for perfect teaching, industrial motor control, and switching power supply.



Sequence Function

The sequence mode supports a list of up to 512 waveforms,

With total waveform length of up to 64 Mpts / Ch. (128 Mpts. optional). Repeat, wait, event, and jump are supported. It allows you to load many test cases that need to be performed sequentially at one time, switching from one to another seamlessly.



Clean and Safe Output

Ground isolation eliminates ground loops, ensuring clean output signals, reliable operation, and enhanced protection for your tests and applications.



Optimized Space Efficiency

With its compact size this series is highly portable and saves space on your workbench.

Compared to the traditional method of using four instruments for 8-channel outputs, this series integrates up to 8 channels into a single device, saving up to two-thirds of the

bench space and offering greater flexibility in integration.



Sequence Function

The sequence mode supports a list of up to 512 waveforms, with total waveform length of up to 64 Mpts/CH (128 Mpts/CH optional). Repeat, wait, event, and jump are supported.

This allows you to load several test cases that need to be performed sequentially at one time, switching from one to another seamlessly.



Excellent user Experience

The 10.1" HD touch screen (1280x800) and physical keys and knobs make smoother and easier setup of measurement operations.



Built-in Harmonic Generator (Max. 20th Order)

The harmonic generator (max. 20th order) provides a more precise measurement method for the performance test of devices like high-order filters and amplifiers.



Applications

Embedded System & Digital Circuit Testing

• Clock signal simulation

• Phase Locked Loop (PLL) test

• Logic circuit & high-speed digital system timing analysis



Automotive Electronics & Electric Vehicles (EV)

• Battery Management System (BMS) signal testing

• Electronic Control Unit (ECU) and ECU 1/0 Signal Testing

• Electric motor & inverter control system



Consumer Electronics & Sensor Testing

• Audio signal simulation

• Sensor signal generation

• Touchscreen/display driver signal simulation



Power Semiconductors & Power Electronics

• Switching characteristics analysis of power devices

• DC-DC converter & inverter testing

• Low-frequency signal simulation for wireless power transfer (WITricity)



Industrial Automation & Motion Control

• PLC & process control system testing

• Smart sensor signal simulation

• Industrial motor control algorithm verification



Precision Measurement & Scientific Research

• Bioelectrical signal simulation

• Electronic circuit laboratory education

• Low-frequency signal testing for particle detection instruments
