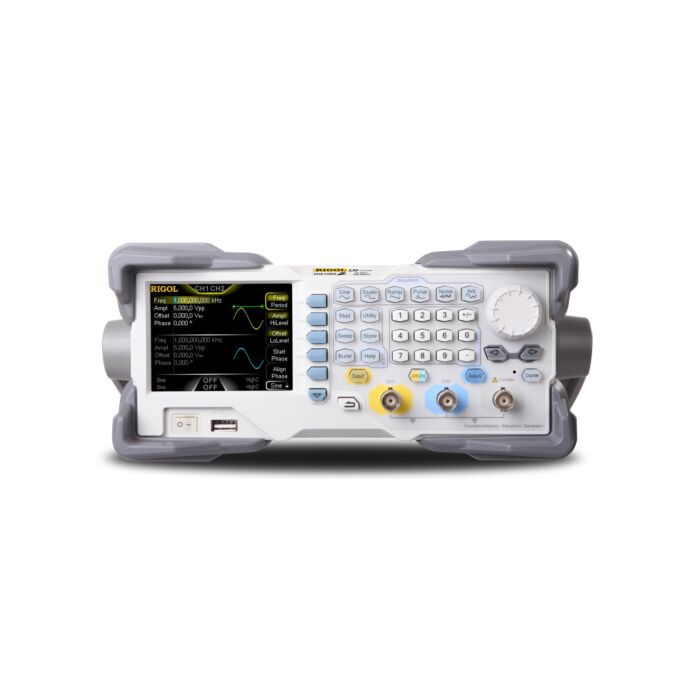

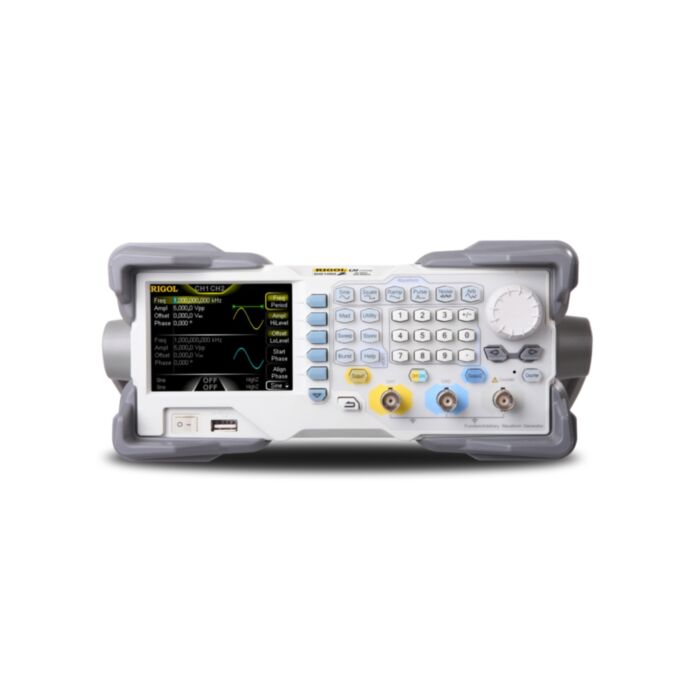

Rigol DG1022Z 25 MHz 2-kanals signalgenerator

25MHz, 2CH, 200MSa/s, 14bits, 2Mpts Arbitrary Memory Depth, 7digits/s Frequency Counter

------

SiFi (Signal Fidelity) for 100% waveform replication
2Mpts/CH(std.), 16Mpts/CH (opt.) arbitrary waveform length
Standard 2 full functional independent channels
±1ppm frequency stability, -125dBc/Hz phase noise, 200ps low jitter
Built-in 8 orders harmonics generator
Built-in 7 digits/s counter up to 200MHz
160 built-in pre-edited waveforms
Intuitive arbitrary waveform editing software
Full modulation supported: AM, FM, PM, ASK, FSK, PSK and PWM

DG1000Z series function/arbitrary waveform generator is a multifunctional generator that combines many functions in one, including Function Generator, Arbitrary Waveform Generator, Noise Generator, Pulse Generator, Harmonics Generator, Analog/Digital Modulator and Counter.

As a multi-functional, high performance and portable generator, it will be a good choice for use in education, R&D, production, test etc.

Last ned datablad for Rigol DG1000Z
