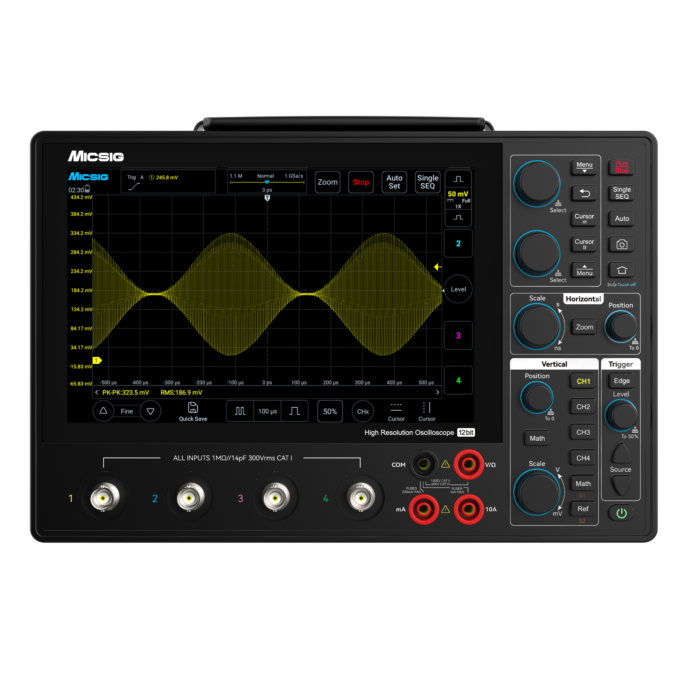

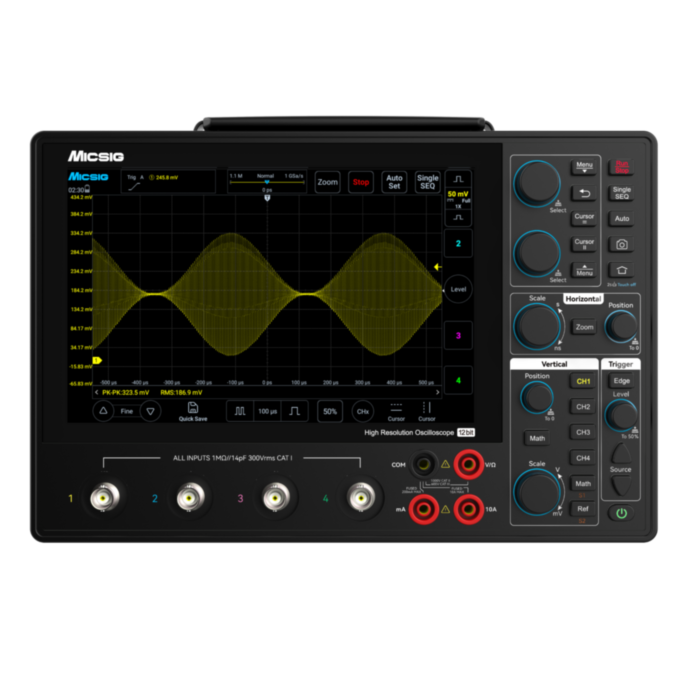

Micsig MHO14-200 200MHz 4-kanals oscilloskop + Multimeter

Built-in Battery for Ultimate Portability
Despite its ultra-thin design, the MHO1 series features a soft rubber protective casing that not only offers a comfortable grip but also excellent protective capabilities. Equipped with a 16000mAh high-capacity, long-life lithium-ion battery, it can withstand over 1000 charge-discharge cycles. Additionally, it supports charging via power banks, completely eliminating worries about battery life and making testing work more worry-free.

Ultra-thin 3.1cm Body
The MHO1 series has a body thickness of only 3.1cm, which is very compact and small, easily fitting into your backpack for efficient testing anytime, anywhere

Integrated Multimeter Function
The MHO1 series oscilloscope innovatively incorporates a 4½-digit multimeter function, supporting a variety of measurements including voltage, current, resistance, continuity testing, diode testing, and capacitance measurement. There's no need to carry an additional multimeter, as it can meet a diverse range of testing requirements. Furthermore, the system supports simultaneous operation of the oscilloscope and multimeter with seamless switching, greatly enhancing on-site work efficiency and convenience.

Key Features

• 4 analog channels
• 200MHz bandwidth
• Up to 1 GSa/s sample rate
• 12-bit ADC
• Rise Time ≤1.75ns
• 110 Mpts Memory Depth
• 50,000wfms/s Max. waveform capture rate
• USB 3.0 Host, USB Type-C,  LAN and HDMI interfaces.
• 8" TFT LCD capacitive touch screen, 1280*800 pixels
• 3.7 V 16000mAh Lithium-ion battery
• Standard DC 12V adapter, supports Type-C 5V charging
• Dimension: 265*174*31mm


Download datasheet for Micsig MHO14-200
