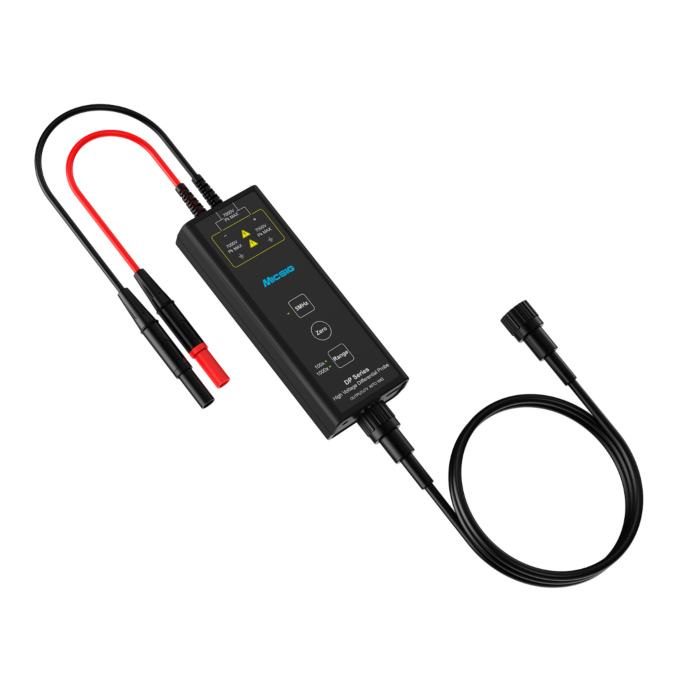

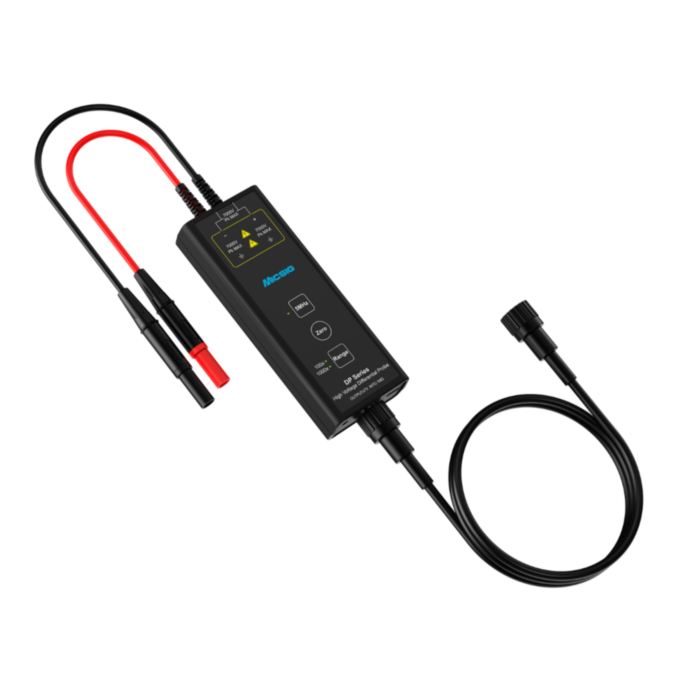

Micsig DP1502 200MHz 1500V differensial probe

Originating from Micsig's cutting-edge SigOFIT technology, the DP series high-voltage differential probe has very low noise floor, excellent  amplitude-frequency characteristics and industry-leading common mode rejection capability, allow users to test high-frequency and high-voltage signals with ease.

• Bandwidth: 200MHz
• Rise time: ≤ 2.2ns (typical: 1.8ns)
• Differential Voltage (DC+AC PK) Max:  150V (50X) / 1500V (500X)
• CMRR: DC：>-80dB,  100kHz: >-60dB,  10MHz: >-30dB, 100MHz: >-26dB
• Input Impedance: 13.2MΩ＜ 1.8pF (differential) /  6.6MΩ ＜ 3.6pF  (each input to ground)
• Category: CAT II: 1000V / CAT III: 600 V
• 5MHz Bandwidth Limit: Probe effectively eliminates high-frequency noise.
• Quick Zero: Short-circuit the test leads, press Zero button, the probe can be zeroed very fast.
• Dual Range Selection: Improves signal-to-noise ratio, meet more test requirements.
• BNC Interface: Standard BNC interface, works with any oscilloscope.
• Command & Programming Control: USB-C interface supports data communication for command control.

Applications

• Floating measurements
• High voltage isolation measurements
• Switching power supply design
• Power converter design
• Inverter, UPS power supply
• Welding, electroplating power supply
• Electronic ballast design
• Motor drive design
• Induction heating, induction cooker
• CRT display design
• Low-voltage electrical appliances
• Electronic power and electric drive experiments

Download Micsig DP1502 Datasheet
