Micsig CP2100A DC/AC 10A/100A 800KHz strømprobe

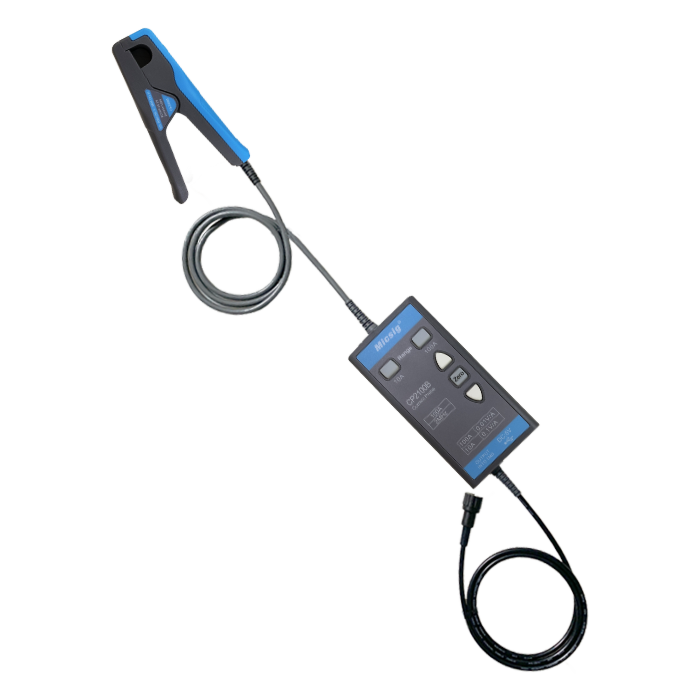

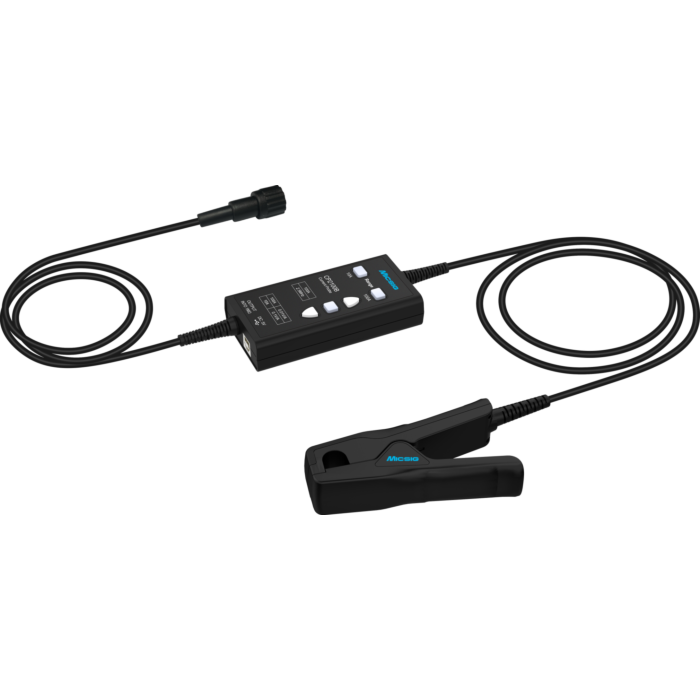

The Micsig CP2100A is a compact, split-design current probe capable of measuring both AC and DC.

Designed for convenience and precision, it features a standard BNC interface for seamless connection to oscilloscopes and can also be connected to multimeters via a adapter(optional).

With a bandwidth of 800KHz and dual-range functionality, it is an low cost allround current probe.

Key Features

• Dual Measurement Ranges: Easily switch between 10A (0.1V/A) and 100A (0.01V/A) ranges to suit your measurement needs.

• Effortless Calibration: Features both automatic and manual zero adjustment to ensure a reliable and accurate baseline.

• USB Powered: Operates on DC 5V via a USB cable, eliminating the need for an additional bulky power supply.

• Safety Protection: Built-in overcurrent alarm with a buzzer and flashing button lights to prevent probe damage.

• Compact Design: The small probe head and split-core design allow for easy clamping in tight spaces.

• Standard BNC interface, compatible with any oscilloscope

Technical Specifications

• Bandwidth: DC to 800KHz.

• DC Accuracy (Typical): 3%±50mA (10A) / 4%±50mA (100A, 500mA - 40Apk) 15% (100A，40Apk~100Apk）

• Max. Measuring Current: 100Apk; 70.7Arms (DC+AC pk)

• Max. Conductor Diameter: 13mm.

• Safety Rating: CAT III 300V / CAT II 600V.

Applications

Commonly used in motor drives, industrial frequency systems, inverters, power supplies, avionics, and general electronic engineering.

• Measurement and fault analysis of power circuits
• Measurement of motor drives such as frequency converters
• Measurement of power electronic devices
• Power frequency applications and measurements
• Avionics applications
