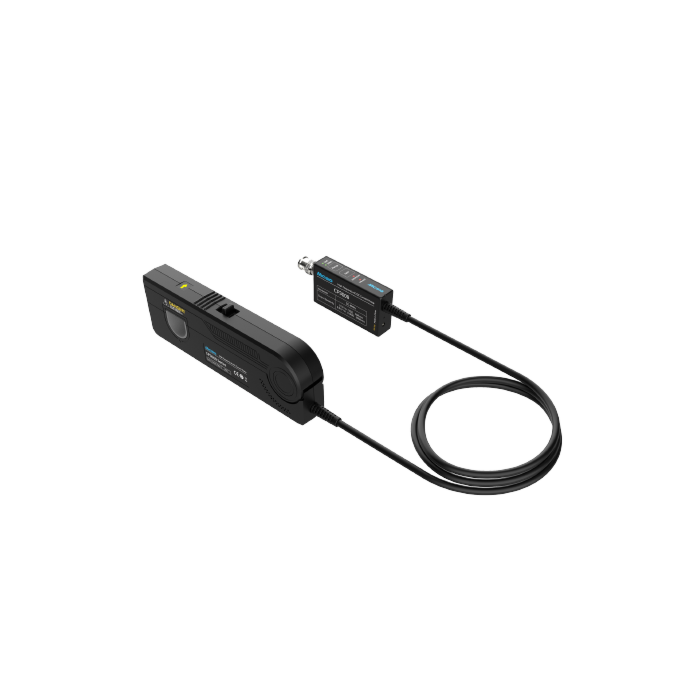

Micsig CP1510 30A / 150A 10MHz AC/DC strømprobe

The Micsig CP1510 is a high-performance AC/DC current probe designed for engineers who demand professional-grade precision.

Delivering 1% accuracy and a high-speed 10MHz bandwidth, it provides the reliable, low-noise data required for rigorous power analysis.

With dual measurement ranges (30A/150A) and resolution down to 10mA, the CP1510 is the ideal tool for capturing everything from subtle small-signal details to high-current transients.

Key Features

• Dual-Range Versatility: Switch between 30A and 150A modes to optimize resolution for your specific measurement needs.

• High-Precision Waveforms: Achieve typical 1% accuracy with resolution as fine as 10mA, ensuring crystal-clear signal integrity on your oscilloscope.

• Effortless Calibration: A one-button Auto-Zero and Degaussing function quickly removes residual magnetism to ensure an accurate, drift-free baseline.

• Safety & Protection: Features a built-in overcurrent alarm with both light and audible alarm.

• Universal Compatibility: The standard BNC interface ensures the CP1510 is ready to use with virtually any oscilloscope brand.

Technical Specifications

 Applications

• Electric Vehicle (EV) & Transportation: Perfect for analyzing battery management systems (BMS), motor controllers, and DC-DC converters. It helps engineers monitor high-current surges during acceleration and subtle standby currents.

• Switching Power Supply Design (SMPS): Measure switching losses and ripple current with high precision. The 10MHz bandwidth is essential for capturing the fast rise times of modern high-frequency power supplies.

• Semiconductor Device Analysis: Essential for testing the characterization of MOSFETs, IGBTs, and the latest GaN/SiC power devices under real-world load conditions.

• Inverter & Transformer Design: Ideal for evaluating efficiency and saturation in magnetic components. Use the 150A range to measure peak currents in heavy-duty inverters.

• Industrial Control & Consumer Electronics: From troubleshooting PLC outputs to optimizing the energy efficiency of home appliances, the CP1510 provides the versatility needed for diverse electronic ecosystems.

• Avionics & Aerospace Design: Offers the high reliability and accuracy required for testing sensitive 400Hz power systems and complex airborne electronic hardware.

• Electronic Ballast Design: Analyze the high-frequency current waveforms in lighting ballasts to ensure longevity and compliance with energy standards.

• Engine-Driven Systems: Measure cranking currents and alternator outputs in internal combustion engine (ICE) electronics and hybrid systems.

• Power Electronics & Electric Drive Experiments: A must-have for laboratory environments and R&D, allowing students and researchers to visualize complex current vectors in real-time.

• General Electronic Engineering Experiments: A versatile "daily driver" for any lab bench, capable of handling everything from low-power PCB debugging to high-power system validation.

Download Micsig CP1510 Brochure / datasheet

Download Micsig CP1510 user manual
