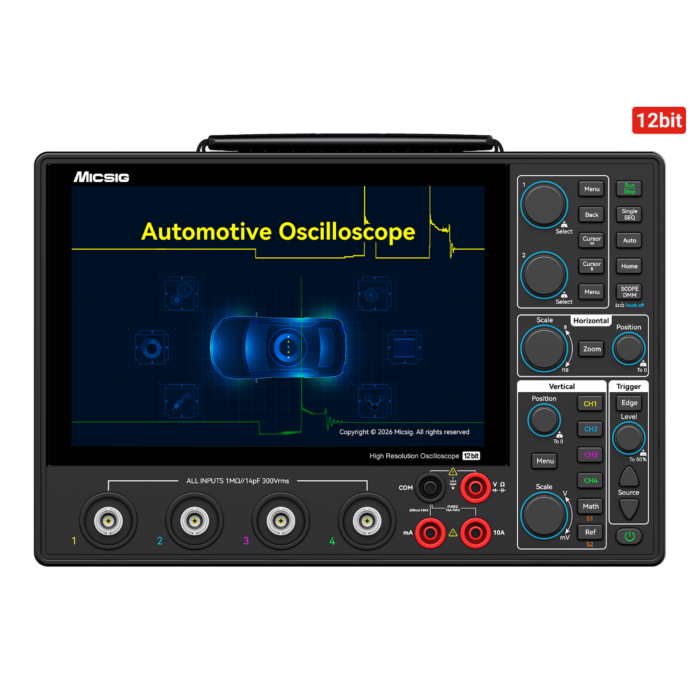

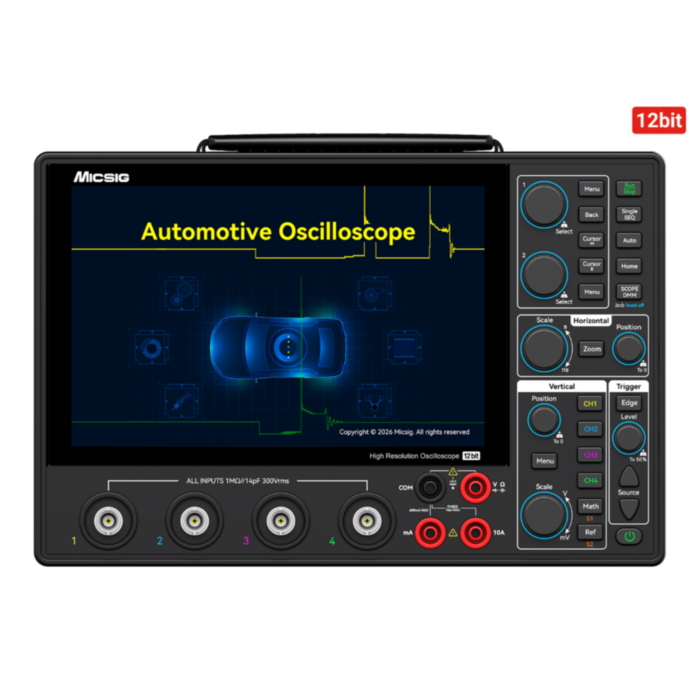

Micsig AHO14-200 200MHz 4-kanals Bilindustri oscilloskop + Multimeter

The Micsig AHO1 Series is a professional, high-resolution automotive oscilloscope purpose-built for advanced vehicle diagnostics.

Combining a high-speed 200 MHz bandwidth with a 12-bit ADC, it provides 16 times the detail of traditional 8-bit instruments, allowing technicians to observe waveform details with absolute clarity.

Its ultra-slim 3.1 cm portable design and massive 16,000mAh battery make it the ultimate tool for mobile repairs and outdoor diagnostics.

Dual-Software Architecture

The AHO1 features an innovative dual-software system that allows you to switch between two specialized modes:

• Automotive Mode: Dedicated test modes for automotoive engines, sensors +++.

• General Purpose Mode: Transforms the device into a professional-grade oscilloscope for general electronic measurements and lab work.

Key Features

• 12-Bit Vertical Resolution: Utilizing a high-resolution ADC with 4096 quantization levels for superior signal integrity and precision.

• 1GSa/s sample rate:

• Integrated 4⅚-Digit Multimeter: Built-in support for voltage, current, resistance, continuity, diode, and capacitance testing. Operate the oscilloscope and multimeter simultaneously with seamless switching.

• Ultra-Portable Power: At only 3.1 cm thick, it fits easily in a backpack. The 16,000mAh Li-ion battery supports USB-C charging and power bank compatibility for all-day field use.

• Advanced Storage: Features 110 Mpts memory depth and standard segmented storage, allowing you to capture multiple trigger events and analyze them individually without wasting memory.

• Versatile Operation: Choose between full touchscreen, physical buttons and knobs, or hybrid operation. The SigTest UI is optimized for speed and simplicity.

• Remote Connectivity: Supports HDMI direct output for external displays, PC/Mobile remote control, and LAN /USB SCPI commands for automated testing.

 Download datasheet for Micsig AHO14-200
