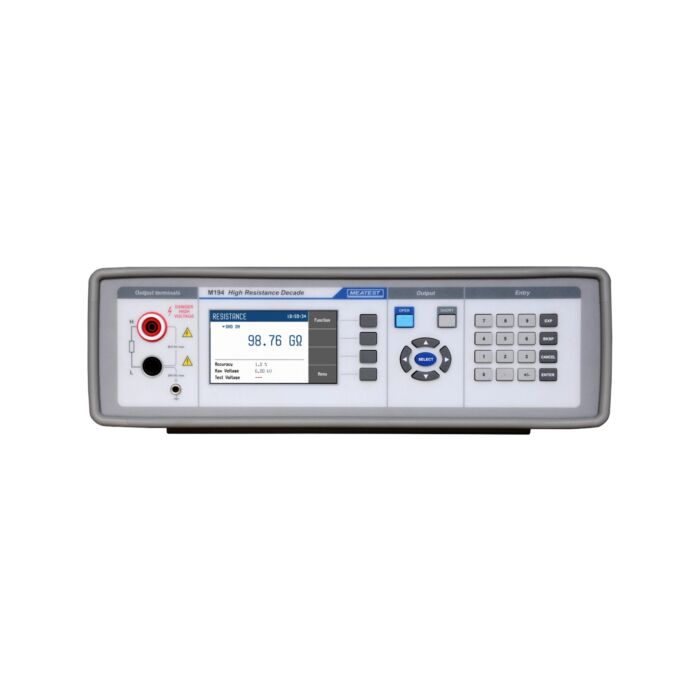

Meatest M194 High Resistance Decade
High resistance decade with built-in test signal meter for calibration of high resistance meters up to 6 kV. Based on M6xx Real-Resistance decade series with short function for short current testing.
Meatest M194 High Resistance Decade is designed for calibration of insulation testers, megaohmmeters and resistance ranges of safety testers, HIPOT testers or any other DC high resistance meter with test voltage up to 6 kV. Apart from resistance source in continuous range from 10 kΩ to 100 GΩ, the M194 has built-in multimeter indicating either test voltage in resistance function or mA current in short function for testing of UUT's short current.
Based on Meatest M6xx series, this programmable decade comes with similar benefits - large LCD showing relevant parameters including total accuracy, automatically compensated parasitic resistances, easy recalibration procedure and extensive remote control connectivity via RS232, IEEE488, USB and Ethernet.
|DC resistance||10 kΩ - 100 GΩ, 6.3 kV max.
± 0.1% / year
Test Signal Meter
|DC voltage||50 V - 6.3 kV
± 0.5% / year
|DC current||0 - 10 mA
± 0.2% / year
