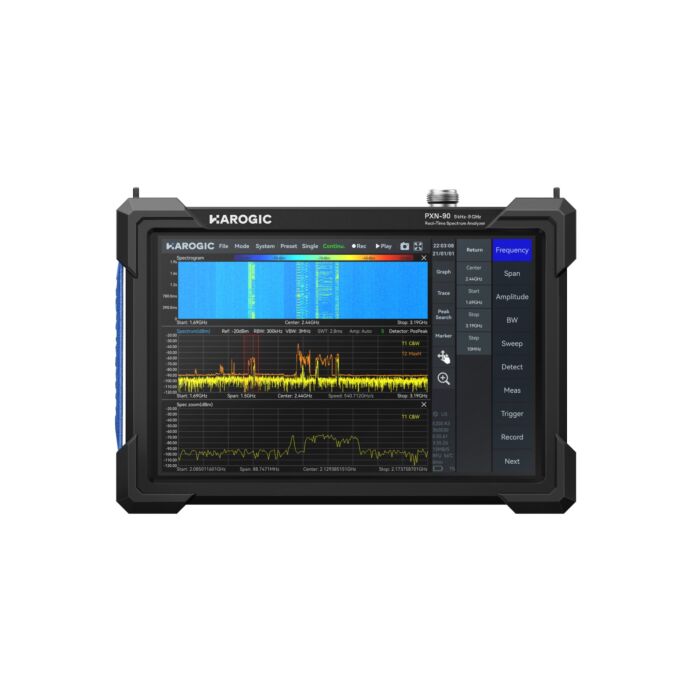

Harogic PXN-90 9kHz - 9 GHz Handheld real-time spectrum analyzer

RF PERFORMANCE WITHIN REACH

Harogic PXN series adopts a high-performance superheterodyne receiver architecture and is equipped with up to 14 high-performance
preselector filters.

It delivers outstanding phase noise, dynamic range and analysis speed with limited budget.

EASE OPERATION

PXN series features a 10.1-inch multitouch display with an intuitive, simple UI for ease operation.

Weighing just 1.5 kg, its ultralightweight design ensures seamless deployment across both laboratory and field environments.

RICH MEASUREMENT FUNCTIONS

PXN series comes standard with a professional-grade measurement suite for free, including Channel Power, Occupied Bandwidth (OBW), and X dB Bandwidth.
Advanced capabilities such as Harmonic Analysis, AM/FM Demodulation, and automated Phase Noise measurements are fully integrated for precise signal characterization.

Key Features

• High-performance superheterodyne receiver with up to 14 preselector filter bands
• Frequency range: 9 kHz to 9 GHz
• Analysis bandwidth: 50 MHz (100 MHz option)
• Full-band preamplifier as standard
• 1 GHz DANL: -168 dBm/Hz
• 9 GHz DANL: -167 dBm/Hz
• 1 GHz phase noise: <-110 dBc/Hz@10 kHz offset
• 1 GHz phase noise measurement: <-124 dBc/Hz@10 kHz offset
• Sweep speed: up to 1 THz/s (RBW = 250 kHz)
• IF rejection and image rejection: >95 dBc
• Integrated GNSS, supporting frequency calibration via GNSS
• SCPI protocol supported for remote control
• Up to 2.5 hours battery life (can be extended with powerbank)
• Portable 1.5 kg design with a 10.1-inch multitouch screen
