Binho Supernova Multi-Protocol USB Host Adapter

kr 26 240,00 kr 20 992,00

Varenummer

102455

The Binho Supernova USB Host Adapter enables direct connection between a PC and hardware circuits through various digital buses, including MIPI I3C, I2C, SPI and UART.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detaljer

The Binho Supernova USB Host Adapter allows one to interface their computer directly to hardware circuits. Featuring support for MIPI I3C Protocol v1.0, v1.1.1, and v1.2, the Supernova offers an unmatched value proposition in the test tool market. The Supernova features a modern USB Type-C port for connection to the host PC, 5 x RGB LEDs for visual status indication, and a variety of DUT-facing connections all in a compact, robust machined-aluminum enclosure including integrated mounting holes.

Beyond I3C, the host adapter is able to communicate on several other digital buses: I2C, SPI, and UART. All of these protocols are implemented on their own dedicated pins and can be operated simultaneously. A bank of 6 x dedicated digital GPIO pins can be assigned to other related or unrelated purposes such as GPIO, interrupts, resets, chip selects, etc, as well as operating as digital PWM outputs (coming soon).

Key Features

USB 2.0 Full-Speed 12 Mbps Connection to Host PC
- USB-C connector
Support for MIPI I3C Basic
- v1.0, v1.1.1, and v1.2
- Controller or Target role
- SDR mode, HDR-DDR
- Support for IBI, HotJoin and all CCCs
- Voltage range from 0.8V to 3.3V
Support for SPI protocol
- SPI Controller
- All 4 SPI Modes Supported
- Up to 50 MHz max clock speed
- Up to 4 x CS signals
- Configurable MSB/LSB
- SPI Peripheral (coming soon)
- Voltage range from 1.2V to 3.3V
Support for I2C protocol
- I2C Controller
- 1 MHz max clock speed
- 7-bit Addressing, Clock Stretching
- Configurable Pull-up Resistors
- 10-bit Addressing (coming soon)
- I2C Peripheral (coming soon)
- Voltage range from 1.2V to 3.3V

Support for UART protocol
- 115200 max baud
- Support for Hardware Flow Control
- Voltage range from 1.2V to 3.3V
GPIO pins
- 6 x Digital IO pins
- Voltage range from 1.2V to 3.3V
- Configurable as Interrupts
- PWM Support (coming soon)
Provides downstream power to DUT
- Programmable from 1.2V to 3.3V
Robust Machined Aluminum Enclosure
- 5 x RGB Status LEDS
- Integrated mounting holes
- Silent, Fanless design

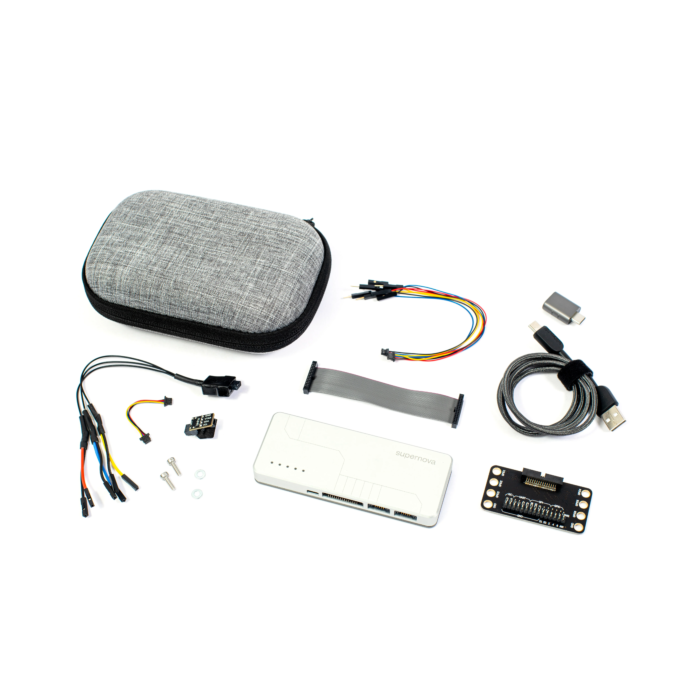

All cables and accessories included
- Stored in custom zippered case
Full-featured Software Support
- Point-and-Click GUI
- Cross-Platform: Windows, Mac, Linux
- Python, C/C#/C++ SDKs
- Field-Upgradeable Device Firmware

Target Applications

Device Driver Development
Firmware Development & Verification
Proof of Concept Development
Automated HW/FW Testing
FLASH & EEPROM Programming
NVMe-MI (MCTP over I3C) & JESD300-5 SPD Applications

Download Binho Supernova datasheet
