Binho Pulsar Multi-Protocol USB Host Adapter

kr 7 865,00 kr 6 292,00

Varenummer

102454

The Binho Pulsar USB Host Adapter enables direct connection between a PC and hardware circuits through various digital buses, including I2C, SPI, UART, RS-485, 1-Wire, and CAN-FD.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Detaljer

The Binho Pulsar USB Host Adapter allows one to interface a PC directly to hardware circuits. Featuring a USB 2.0 High Speed 480 Mbps link to the host, the Pulsar offers an unmatched value proposition in the test tool market. The Pulsar features a modern USB Type-C port, 5 x RGB LEDs for visual status indication, and a variety of DUT-facing connections all in a compact, robust machined-aluminum enclosure including integrated mounting holes.

The host adapter is able to communicate on many digital buses: I2C, SPI, UART, RS-485, 1-Wire, and CAN-FD. All of these protocols are implemented on their own dedicated pins and can be operated simultaneously. A bank of 6 x dedicated digital GPIO pins can be assigned to other related or unrelated purposes such as GPIO, interrupts, resets, chip selects, etc, as well as operating as digital PWM outputs.

Key Features

USB 2.0 High Speed 480Mbps Connection to Host PC
USB-C connector
Support for SPI protocol
- SPI Controller
- All 4 SPI Modes Supported
- Up to 50 MHz max clock speed
- Up to 4 x CS signals
- Configurable MSB/LSB
- SPI Peripheral (coming soon)
- Voltage range from 1.2V to 3.3V
Support for I2C protocol
- I2C Controller
- 1 MHz max clock speed
- 7-bit Addressing, Clock Stretching
- Configurable Pull-up Resistors
- 10-bit Addressing (coming soon)
- I2C Peripheral (coming soon)
- Voltage range from 1.2V to 3.3V
Support for UART protocol
- 115200 max baud
- Support for Hardware Flow Control
- Voltage range from 1.2V to 3.3V
Support for RS-485-
- -7V to +12V Common-Mode Input
- Half-Duplex
Support for CAN-FD Protocol (coming soon)
- Optimized for use in 12V systems
- Up to 5 Mbps data rate

Support for 1-Wire Protocol (coming soon)
- Standard and Overdrive speeds
- 3.3V and 5V operation
GPIO pins
- 6 x Digital IO pins
- Voltage range from 1.2V to 3.3V
- Configurable as Interrupts
- PWM Support (coming soon)

Provides downstream power to DUT
- Programmable from 1.2V to 3.3V
Robust Machined Aluminum Enclosure
- 5 x RGB Status LEDS
- Integrated mounting holes
- Silent, Fanless design

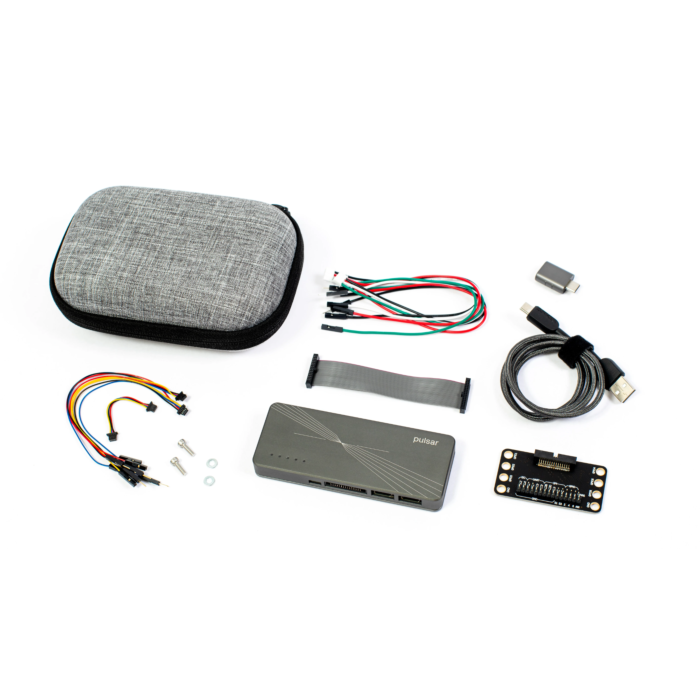

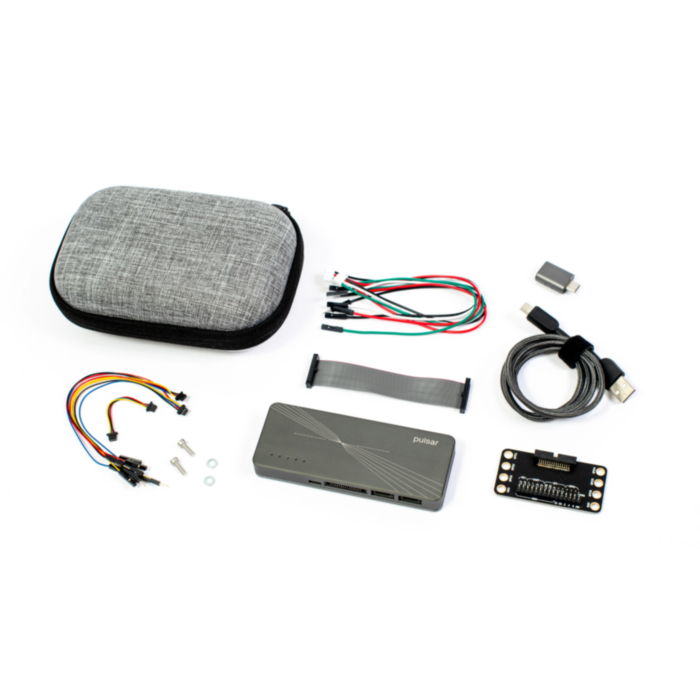

All cables and accessories included
- Stored in custom zippered case
Full-featured Software Support
- Point-and-Click GUI
- Cross-Platform: Windows, Mac, Linux
- Python, C/C#/C++ SDKs
- Field-Upgradeable Device Firmware

Target Applications

Device Driver Development
Firmware Development & Verification
Proof of Concept Development
Automated HW/FW Testing
FLASH & EEPROM Programming

Download Binho Pulsar datasheet

Mer informasjon

Mer informasjon
Produsent	Binho
Produktnr	BIN105
